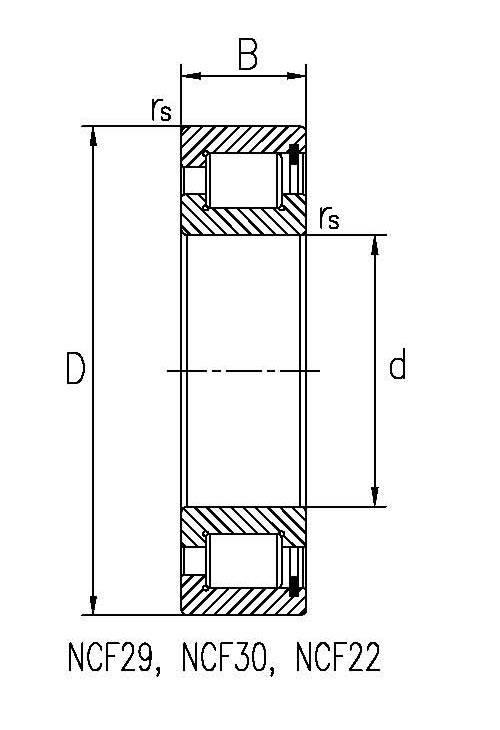

INclass1 型號 | 外形尺寸(mm) | 基本負荷(KN) | 極限轉速(r/min) | 重量(KG) | d | D | B | rsmin | s | 動(dòng) | 靜 |
183076 |
380 | 560 | 135 | 5 | 16 | 2650 | 4550 | 550 | 106 |
182204 |
20 | 47 | 18 | 1 | 1 | 41 | 37.5 | 7000 | 0.16 |
183005 |
25 | 47 | 16 | 0.6 | 1.5 | 31.5 | 32.5 | 7500 | 0.12 |
182205 |
25 | 52 | 18 | 1 | 1 | 46 | 45 | 6000 | 0.18 |
192305 |
25 | 62 | 24 | 1.1 | 2 | 63 | 57 | 4500 | 0.37 |
183006 |
30 | 55 | 19 | 1 | 2 | 40.5 | 43 | 6500 | 0.2 |
182206 |
30 | 62 | 20 | 1 | 1 | 61 | 63 | 5000 | 0.3 |
192306 |
30 | 72 | 27 | 1.1 | 2 | 87 | 85 | 3800 | 0.56 |
183007 |
35 | 62 | 20 | 1 | 2 | 49.5 | 55 | 5500 | 0.26 |
182207 |
35 | 72 | 23 | 1.1 | 1 | 76 | 77 | 4300 | 0.44 |
192307 |
35 | 80 | 31 | 1.5 | 2 | 113 | 112 | 3400 | 0.74 |
183008 |
40 | 68 | 21 | 1 | 2 | 59 | 68 | 5000 | 0.31 |
183008 |
40 | 68 | 21 | 1 | 2 | 59 | 68 | 5000 | 0.31 |
182208 |
40 | 80 | 23 | 1.1 | 1 | 84 | 89 | 3800 | 0.55 |
192308 |
40 | 90 | 33 | 1.5 | 2 | 152 | 155 | 3000 | 1.01 |
183009 |
45 | 75 | 23 | 1 | 2 | 63 | 76 | 4600 | 0.4 |
182209 |
45 | 85 | 23 | 1.1 | 1 | 88 | 96 | 3600 | 0.59 |
192309 |
45 | 100 | 36 | 1.5 | 3 | 162 | 165 | 2700 | 1.37 |
183010 |
50 | 80 | 23 | 1 | 2 | 77 | 92 | 4300 | 0.43 |
182210 |
50 | 90 | 23 | 1.1 | 1 | 95 | 109 | 3300 | 0.64 |
192310 |
50 | 110 | 40 | 2 | 3 | 205 | 215 | 2500 | 1.81 |
183011 |
55 | 90 | 26 | 1.1 | 2 | 105 | 134 | 3700 | 0.64 |
182211 |
55 | 100 | 25 | 1.5 | 1.5 | 122 | 145 | 3000 | 0.87 |
192311 |
55 | 120 | 43 | 2 | 3 | 242 | 255 | 2300 | 2.28 |
182912 |
60 | 85 | 16 | 1 | 1 | 54 | 74 | 3800 | 0.29 |
183012 |
60 | 95 | 26 | 1.1 | 2 | 108 | 141 | 3500 | 0.69 |
182212 |
60 | 110 | 28 | 1.5 | 1.5 | 152 | 179 | 2700 | 1.18 |
192312 |
60 | 130 | 46 | 2.1 | 3 | 260 | 280 | 2100 | 2.88 |
182913 |
65 | 90 | 16 | 1 | 1 | 57 | 81 | 3500 | 0.31 |
183013 |
65 | 100 | 26 | 1.1 | 2 | 113 | 154 | 3200 | 0.73 |
|
